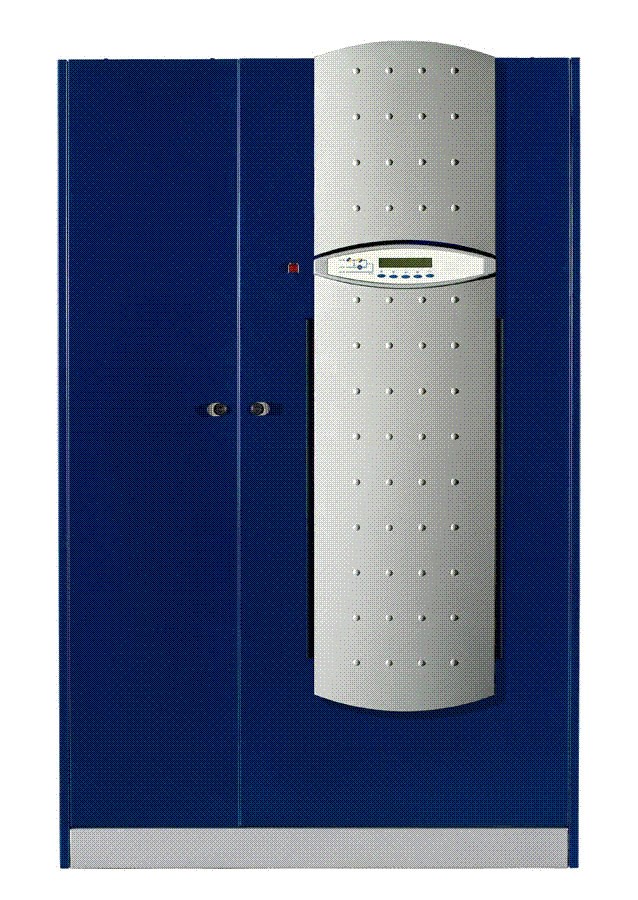

HYPERION

The small dimensions of the Hyperion 220-250-300 kVA are amazing. although an inverter output transformer to guarantee the galvanic separation between continuous and alternate line is included. This feature makes handling easy with a consequent reduction of footprint space and installation costs.

The high frequency IGBT rectifier has optimised switching which results in a sinewave input independently from the available input waveform. The input power factor, that is close to unity, makes the Hyperion the ideal solution to operate with Gen-sets, allowing a down sizing compared to past systems.

The Hyperion has a new cooling system that allows the UPS to be placed against the wall;this feature, plus easy front access to all internal components, enables fast maintenance.

The high efficiency (>93%) allows energy savings, installing or exchanging a UPS of old generation with a technologically advanced UPS such as the Hyperion allows immediate savings in terms of kw/h cooling ratings or to air conditioning the room where the UPS is installed considering the high power involved.

Available in 200-300 kVA.

Technical Specification

UPS(Power-kVA)	200	250	300
Nominal input voltage-Vac	400 + 10% -20%(380 – 415 adjustable)
Nominal output voltage-Vac	380÷415 (adjustable)
Nominal output power (PF 0,8)-kVA	200	250	300
Nominal output power (PF 1)- kW	160	200	240
Efficiency(AC+AC)-%-	>93
UPS ambient temperature -Celcius	0 ÷40
Audible noise level (acc. EN 50091)dB	<62	<62	<62
Immunity(EMI)	According “EN 50091-2″ (CE Label)”
Battery test	automatic every month/manual
Rectifier Bridge	IGBT – low harmonic distortion (<5%)
Inverter Bridge	IGBT with isolation transformer
Overload capability	125% for 10′ -200% for 100ms
Output harmonic distortion	<2%
Output harmonic distortion non linear	<5%
Crest factor(non linear load 75%	3:1
Dimensions LxPxH-mm	1200x860x1900
